NAME

CAT 6 - Easy-In (EZ) STP Plug

PART NUMBER

BT-S0787H

Our Easy-In Plugs enable efficient plug termination by inserting the wires all the way through the built-in holes. Its one piece design eliminates the need for bars or any other loading parts.  Once the exposed wires are checked for proper wiring, just use our Easy-In Crimping tools to crimp and simultaneously cut the exposed wires.   And good to go!

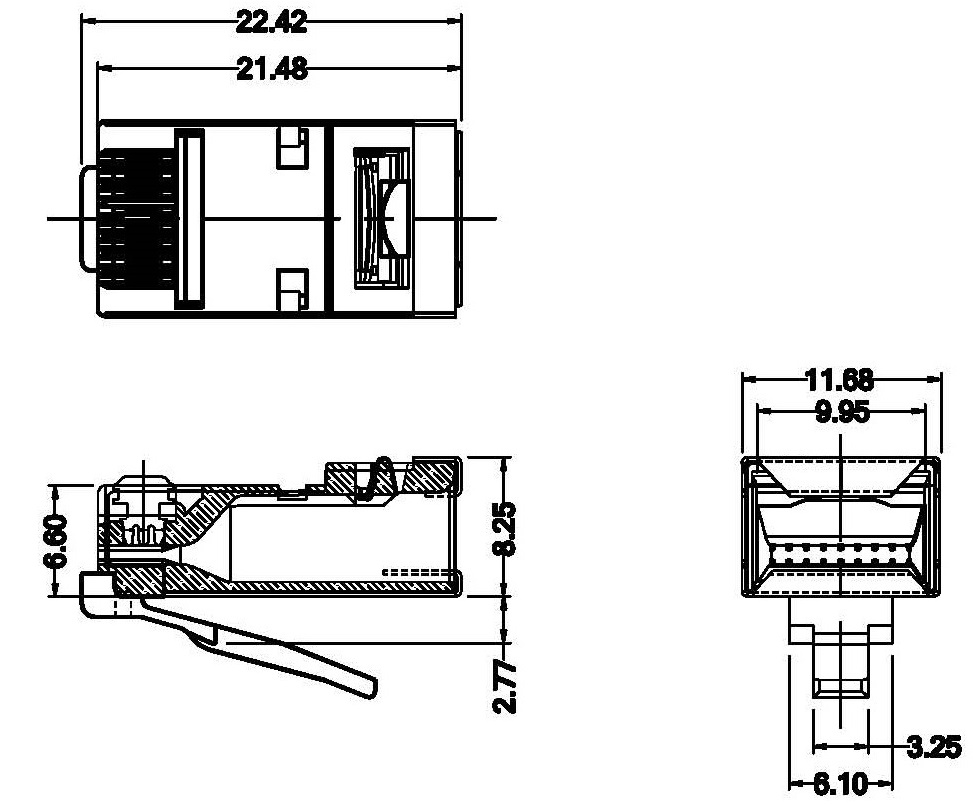

Product image / Product requirements

23 - 26 AWG for Solid & Stranded wires

MATERIALS & FINISH

  • Body: PC, UL94V-2 or UL94V-0, clean.
  • Contact: Copper alloy, Gold plating over Nickel on contact areas.
  • Shield:  Brass with Nickel plating

MECHANICAL SPECIFICATIONS

  • Operating Temperatures”  -40°C to 85°C
  • Mating Cycles:  750 Cycles min.

Electrical

  • Current rating: 1.5 Amps
  • Voltage:  125VAC
  • Insulation Resistance: 500 Mega Ohms Min.
  • Contact Resistance: 30 Milli Ohms Max.
  • Dielectric Withstanding Voltage:  1000VAC
