NAME

FTP Category 6A 90° Tool-less Shielded Keystone Jack

PART NUMBER

BT2013C-TMAF

Our FTP Cat. 6A 90º Tool-less Shielded Keystone Jack is a revolutionary & innovative technology designed to shorten installation time and mitigate operational difficulties.  The 90° design is most easily used in any vertical termination situation for UTP modular systems.  This jack can be terminated with 110 and Krone tools.

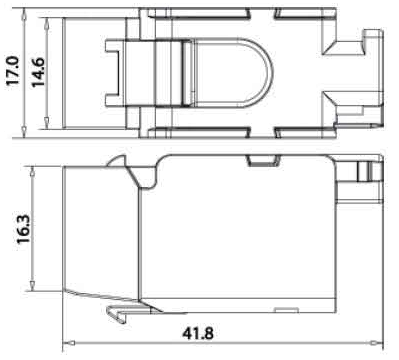

Product image / Product requirements

Specifications

  • Qualified Cat. 6A
  • Permanent Link/Channel of TIA/EIA-568-B-2-10 Cat. 6A
  • ISO/IEC 11801 2nd edition, Amendment 1.1
  • Cenelec EN 50173-X 2nd edition
  • IEC 61935-1 edition 3

Mechanical

  • Plug Insertion Life: 750 Cycles Minimum
  • Plug and Jack Contact Force: 100 Grams Minimum
  • Plug Retention Force: 30 lbs Minimum
  • Cenelec EN 50173-X 2nd edition
  • Temperature: -40oF to 150oF (-40oC to 68oC)

Physical Characteristecs

  • Housing: PC, UL 94V-0
  • PCB Module
    Insertion: PBT UL94V-0
    Contact: 0.46mm phosphor bronze 30μ” gold over nickel plating
    IDC holder: PC, UL 94V-0
    PBC: FR4
  • Cap: PC, UL 94V-0
  • Shutter: PC, UL 94V-0

Electrical

  • Current rating: 1.5 Amps
  • Insulation Resistance: 500 Mohms Minimum
  • Contact Resistance: 20 Mohms Maximum
  • DC Resistance: 0.1 ohms Maximum
