NAME

UTP Category 5e 90° UTP Keystone Jack

PART NUMBER

BT2013C-C5E

Our UTP Cat. 5e 90º Keystone Jack is a revolutionary & innovative technology designed to shorten installation time and mitigate operational difficulties.  The 90° design is most easily used in any vertical termination situation for UTP modular systems.  This jack can be terminated with 110 and Krone tools.

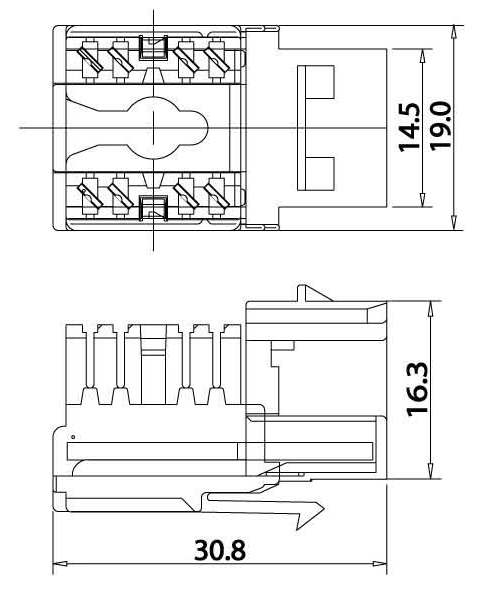

Product image / Product requirements

Mechanical

  • Plug Insertion Life: 750 Cycles Minimum
  • Plug and Jack Contact Force: 100 Grams Minimum
  • Plug Retention Force: 30 lbs Minimum
  • Temperature: -40oF to 150oF (-40oC to 68oC)

Physical Characteristecs

  • Housing: PC, UL 94V-0
  • PCB Module
    Insertion: PBT UL94V-0
    Contact: 0.46mm phosphor bronze 30μ” gold over nickel plating
    IDC holder: PC, UL 94V-0
    PBC: FR4
  • Cap: PC, UL 94V-0
  • Shutter: PC, UL 94V-0

Electrical

  • Current rating: 1.5 Amps
  • Insulation Resistance: 500 Mohms Minimum
  • Contact Resistance: 20 Mohms Maximum
  • DC Resistance: 0.1 ohms Maximum

Specifications

  • Qualified Cat. 5E
  • ANSI/TIA-568-C.2 for CAT 5e
  • ISO/IEC 11801 for CAT 5e
  • FCC Part68
